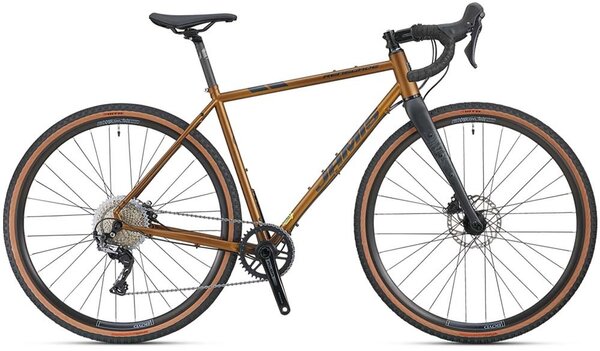

Jamis Renegade S2
$2,399.99
Details
-Jamis Renegade V2 Size Specific Design frame geometry, Reynolds 631 double-butted chromoly
- Jamis Renegade V2 monocoque carbon fiber fork, 12mm thru axle flip-chip with 50/55mm offset
- Boyd GVL Tubeless 11-speed wheelset
- WTB Raddler 700Cx40C
- Shimano GRX ST-RX600 Dual Control STI, 11-speed
- Shimano GRX BR-RX400 flat mount hydraulic disc brakes
| SIZE | 44 650 | 48 | 51 | 54 | 56 | 58 | 61 |
|---|---|---|---|---|---|---|---|
| TT EFFECTIVE | 19.76 / 502 | 20.51 / 521 | 21.1 / 536 | 21.81 / 554 | 22.52 / 572 | 23.19 / 589 | 23.78 / 604 |
| HT ANGLE | 71° | 71° | 71° | 71.5° | 71.5° | 72° | 72.5° |
| ST ANGLE | 73° | 73° | 73° | 73° | 73° | 73° | 73° |
| CHAINSTAY | 16.69 / 424 | 16.69 / 424 | 16.81 / 427 | 16.93 / 430 | 16.93 / 430 | 16.93 / 430 | 17.2 / 435 |
| WHEELBASE | 38.58 / 980 | 39.17 / 995 | 39.69 / 1008 | 40.39 / 1026 | 41.14 / 1045 | 41.54 / 1055 | 41.89 / 1064 |
| FORK RAKE | 1.97 / 50 | 1.97 / 50 | 2.09 / 53 | 2.09 / 53 | 2.09 / 53 | 1.97 / 50 | 1.97 / 50 |
| BB DROP | 2.14 / 54.5 | 2.14 / 54.5 | 2.89 / 73.5 | 2.83 /72 | 2.83 /72 | 2.77 / 70.5 | 2.77 / 70.5 |
| HEADTUBE | 4.76 / 121 | 5.59 / 142 | 4.88 / 124 | 6.1 / 155 | 7.36 / 187 | 8.31 / 211 | 9.06 / 230 |
| STANDOVER | 28.15 / 715 | 28.82 / 732 | 29.88 / 759 | 31.1 / 790 | 31.93 / 811 | 32.87 / 835 | 33.7 / 856 |
| STACK | 19.88 / 505 | 20.67 / 525 | 21.46 / 545 | 22.64 / 575 | 23.82 / 605 | 24.8 / 630 | 25.59 / 650 |
| REACH | 13.82 / 351 | 14.17 / 360 | 14.53 / 369 | 14.88 / 378 | 15.24 / 387 | 15.59 / 396 | 15.94 / 405 |
Part Numbers
| Option | MPN | Store SKU |
|---|---|---|
| Coppertone / 48cm | 03-4149BR | 3501 |
| Coppertone / 51cm | 03-4150BR | 3502 |
| Coppertone / 54cm | 03-4151BR | 3503 |
| Coppertone / 56cm | 03-4152BR | 3504 |
| Coppertone / 58cm | 03-4153BR | 3505 |
| Coppertone / 61cm | 03-4154BR | 3506 |
