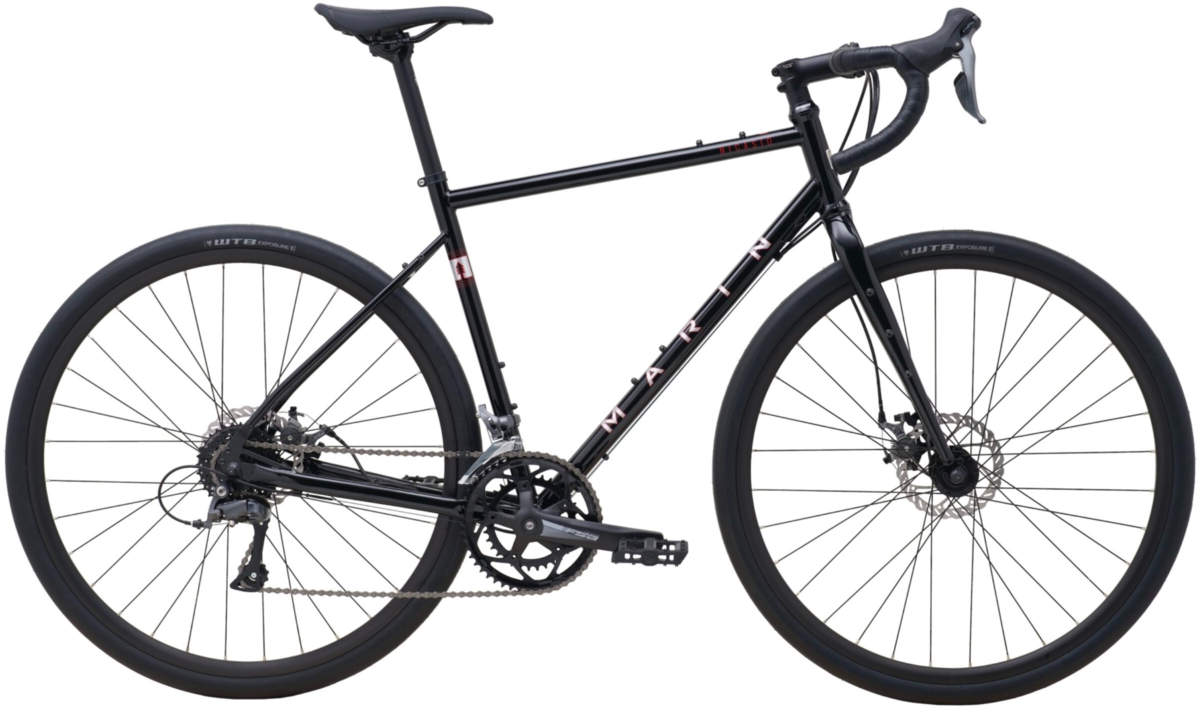

Marin Nicasio 1

Marin Nicasio 1
  • Color: Black
  • Color: Bone Grey
$899.99
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Shipping is not available for this item. Select in-store pick up at one of our convenient 3 Chicago locations or choose local delivery. Enjoy our 30 Day Best Price Guarantee, ensuring you the lowest price

Details

The most affordable model in the family, the Nicasio 1 is built around a smooth-riding and stylish Steezy double-butted CrMo frame and fork and zippy 700C wheels, with room for up to 45mm tires. We’ve specced a 2x8-speed Shimano Claris drivetrain, wide WTB rubber, powerful Tektro mechanical discs and plenty of Marin components.

Sizes:
FRAME SIZE505254565860
STACK (mm) 546 564 578 592 606 620
REACH (mm) 375 375 380 390 402 415
HEADTUBE ANGLE 70.5° 71.5 71.5 71.5 71.5 71.5
HEADTUBE LENGTH (mm) 105 120 135 150 165 180
SEATTUBE ANGLE 74.5° 74° 74° 74° 74° 73.5°
SEATTUBE LENGTH (mm) 460 480 500 520 540 560
TOPTUBE EFFECTIVE (mm) 526 537 546 560 575 599
BB HEIGHT (mm) 269 269 269 269 269 269
BB DROP (REAR/FRONT) (mm) 76 76 76 76 76 76
CHAINSTAY (mm) 430 430 430 430 430 430
WHEELBASE (mm) 1017 1014 1024 1039 1055 1073
STANDOVER HEIGHT (mm) 713 733 752 770 788 806
FORK OFFSET (mm) 50 50 50 50 50 50
SEATPOST DIAMETER (mm) 27.2 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH (mm) 400 400 420 420 440 440
STEM LENGTH (mm) 75 75 90 90 90 90
CRANK LENGTH (mm) 170 170 175 175 175 175

Specs

Frame Steezy Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount
Fork CrMo, Fender and Rack Eyelets, IS Disc Mount
Rims Marin Aluminum Double Wall, 19mm Inner, Disc Specific
Hubs Forged Aluminum Alloy, Disc, 32H
Spokes 14g Black Stainless Steel
Tires WTB Exposure, 700Cx36, Wire Bead
Bottom Bracket Sealed Cartridge Bearings, Square Taper
Crankset FSA Tempo Compact, 50/34T
Shifters Shimano Claris 2x8-Speed
Front Derailleur Shimano Claris
Rear Derailleur Shimano Claris 8-Speed
Cassette/Freewheel SunRace 8-Speed, 11-32T
Chain KMC Z8
Brakes Tektro MDC400, Road Mechanical, 160mm Rotor
Brake Levers Shimano w/ Integrated Shifters
Handlebars Marin Butted Alloy, Compact 16º Flared Drop
Tape/Grips Marin Comfort Tape
Stem Marin 3D Forged Alloy
Headset FSA No.8D, Sealed Cartridge Bearings
Seatpost Marin Alloy, 27.2mm
Saddle Marin Beyond Road Concept
Pedals Nylon Platform

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Black / 50cm / 700c 843346129901 739068001 6317
Black / 52cm / 700c 843346129918 739068002 6318
Black / 54cm / 700c 843346129925 739068003 6319
Black / 56cm / 700c 843346129932 739068004 6320
Black / 58cm / 700c 843346129949 739068005 6321
Black / 60cm / 700c 843346129956 739068006 6322
Bone Grey / 50cm / 700c 843346129970 739069001 6324
Bone Grey / 52cm / 700c 843346129987 739069002 6325
Bone Grey / 54cm / 700c 843346129994 739069003 6326
Bone Grey / 56cm / 700c 843346130006 739069004 6327
Bone Grey / 58cm / 700c 843346130013 739069005 6328
Bone Grey / 60cm / 700c 843346130020 739069006 6329
