Marin Gestalt 2.5 - 2022

Marin Gestalt 2.5
  • Color: Gloss Black/Chameleon Red
$1,749.99
Color:
Gloss Black/Chameleon Red
Please select options
Shipping is not available for this item. Select in-store pick up at one of our convenient 3 Chicago locations or choose local delivery. Enjoy our 30 Day Best Price Guarantee, ensuring you the lowest price

Details

The Gestalt is for the drop bar rider that doesn't want to stick to pavement, and can't help but get dirty no matter the route. Long distance commuters and all-weather riders will appreciate the fender and rack mounts and the sure stopping disc brakes, and the larger volume tires are right at home on that unexpected detour.

Key upgrades over the Gestalt 2:

- Shimano Tiagra Hydraulic Disc Brakes

Geometry

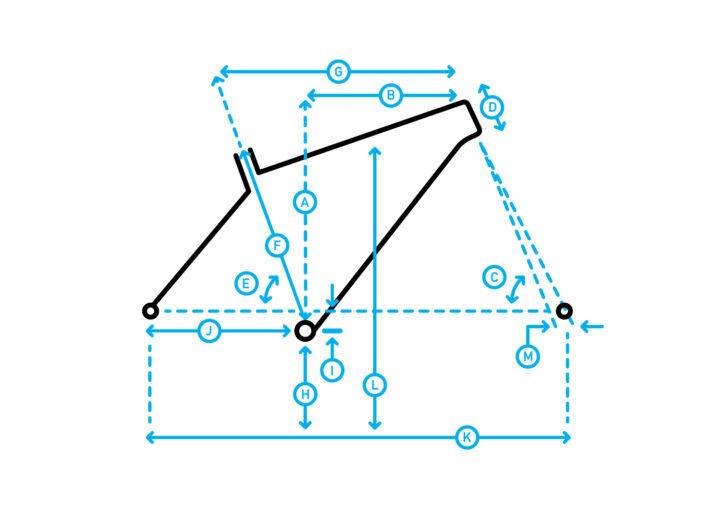

Geometry Chart:
Size (cm)505254565860
A STACK (mm) 542.5 560.4 574.7 593.7 612.7 633.8
B REACH (mm) 369.6 374.3 374.8 389.1 397.7 406.2
C HEADTUBE ANGLE 71° 72° 72° 72° 72° 72.5°
D HEADTUBE LENGTH (mm) 120 135 150 170 190 210
E SEATTUBE ANGLE 74.5° 74° 73.5° 73.5° 73° 73°
F SEATTUBE LENGTH (mm) 470 490 510 530 550 570
G TOPTUBE EFFECTIVE (mm) 520 535 545 565 585 600
H BB HEIGHT (mm) 271 271 271 271 271 271
I BB DROP (mm) 72 72 72 72 72 72
J CHAINSTAY (mm) 415 415 415 415 415 415
K WHEELBASE (mm) 993.1 994.3 999.4 1019.9 1034.6 1044.5
L STANDOVER HEIGHT (mm) 713 732 751 774 793 813
M FORK OFFSET (mm) 50 50 50 50 50 50
SEATPOST DIAMETER (mm) 27.2 27.2 27.2 27.2 27.2 27.2
HANDLEBAR WIDTH (mm) 400 400 420 420 440 440
STEM LENGTH (mm) 70 70 90 90 110 110
CRANK LENGTH (mm) 170 170 175 175 175 175
Sizes:
SizeRider height range
50cm 5'0" to 5'3"
52cm 5'3" to 5'6"
54cm 5'6" to 5'9"
56cm 5'9" to 6'0"
58cm 6'0" to 6'2"
60cm 6'2" to 6'4"

Specs

Frame Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
Fork Marin Full Carbon w/Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
Rims Marin Aluminum Double Wall, 19mm Inner, 24mm Tall, Disc Specific, Tubeless Compatible
Hubs Forged Aluminum Alloy, Disc, 32H
Spokes 14g Black Stainless Steel
Tires Schwalbe, G-One, 700Cx30mm
Bottom Bracket FSA MegaExo Threaded
Crankset FSA Gossamer, MegaExo Spindle, 50/34T
Shifters Shimano Tiagra 2x10-Speed
Front Derailleur Shimano Tiagra
Rear Derailleur Shimano Tiagra 10-Speed
Cassette/Freewheel Shimano Tiagra HG-500, 11-34T
Chain KMC X10
Brakes Shimano Tiagra Hydraulic, 160mm Rotor
Brake Levers Shimano w/Integrated Shifters
Handlebars Marin Butted Alloy, Compact 12º Flared Drop
Tape/Grips Marin Perforated Tape
Stem Marin 3D Forged Alloy
Headset FSA No 42ACB, 1 1/8" x 1 1/2"
Seatpost Marin Alloy, 27.2mm
Saddle Marin Beyond Road Concept
Pedals Commute Platform

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Gloss Black/Chameleon Red / 50cm 843346114808 733962001 5382
Gloss Black/Chameleon Red / 52cm 843346114815 733962002 5383
Gloss Black/Chameleon Red / 54cm 843346114822 733962003 5384
Gloss Black/Chameleon Red / 56cm 843346114839 733962004 5385
Gloss Black/Chameleon Red / 58cm 843346114846 733962005 5386
Gloss Black/Chameleon Red / 60cm 843346114853 733962006 5387
