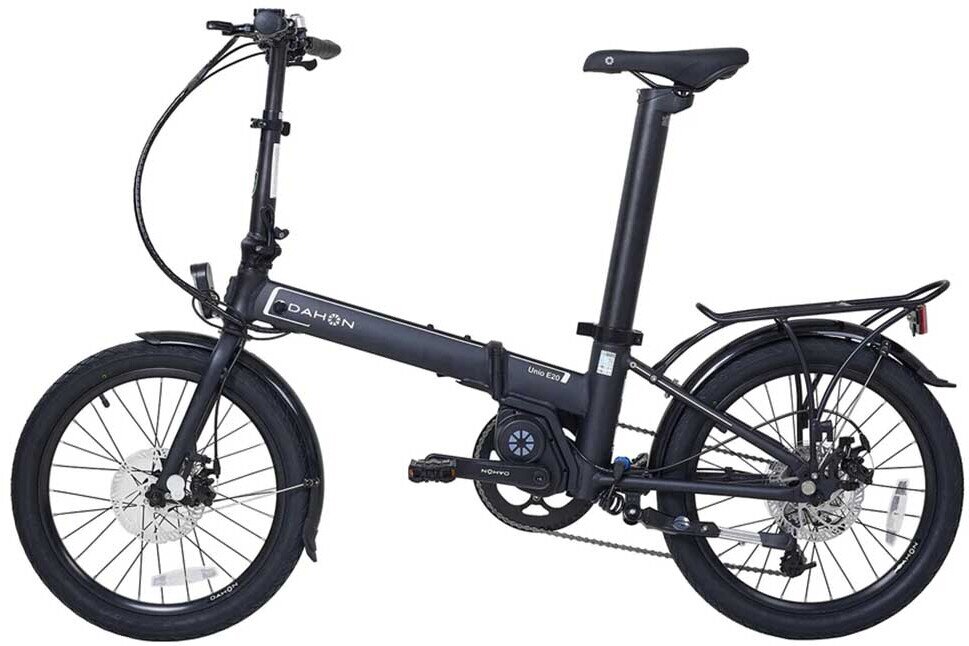

Dahon Unio E20 Disc Mid Motor Electric Bike
$1,599.99
$2,599.99
Details
Electrify your ride with awesome performance, and 9 speeds, powered by a 200W/36V mid-motor and 36V/8.7AH battery. Folding convenience is perfectly complemented with a hidden seatpost battery and an ultra-light drive system. Enjoy long range without sacrificing weight and appearance.
| Folded Dimensions | 825*370*685mm |
| Weight | 16.10 Kg (35.49 lbs) |
| Frame | Lightweight Dalloy Aluminum Sonus Tubeset, Lattice Forged Hinge, w/ ViseGrip Technology |
| Fork | Lightweight and Responsive Dalloy , w/ Integrated Crown |
| Handlepost | Forged Aluminum Radius Telescope w/ FusionTechnology |
| Rims | 20" Lightweight Aluminum Double Wall w/ CNC |
| Front Hub | DAHON Custom 74 mm Compact Alloy, 20 Hole,Cartridge Bearings, Ultralight Design |
| Rear Hub | Ground races,labyrinth water seal,9 spd cassette,Aluminum,QR |
| Spokes | 14 g Stainless Steel |
| Tires | DAHON Custom 20"*1.75" |
| Cranks | Forged Aluminum 52 Tooth Chainring |
| Bottom Bracket | ISIS Drive |
| Chain | YNB |
| Cassette | Sunrace 9 Speed, 11-32T |
| Front Derailleur | n/a |
| Rear Derailleur | DAHON Custom 9-Speed Rear Derailleur |
| Shifters | DAHON Custom 9-Speed Trigger Shifter |
| Handlebar | 6061 Aluminum Flat Bar, 580 mm Wide |
| Grips | DAHON Ergo Comfort |
| Headset | Fusion, Zero Stack, Cartridge Bearing |
| brakes | DAHON Custom V-brakes,Stainless Link,anchor and pivot bolts |
| Brake Levers | DAHON Custom 2.5 Finger Aluminum Lever |
| Saddle | DAHON Ergo Comfort |
| Seatpost | DAHON Custom 6061 Aluminum, 57 mm x 560 mm |
| Pedals | DAHON Foldable, PC Body&Cage |
| Kickstand | Lightweight Aluminum, Adjustable |
| E-Assist | DAHON 36V200W Motor, 36V8.7AH Battery |
Videos
The Dahon Unio E20
Part Numbers
| MPN | Store SKU |
|---|---|
| UNIO-E20 | ZIY |
