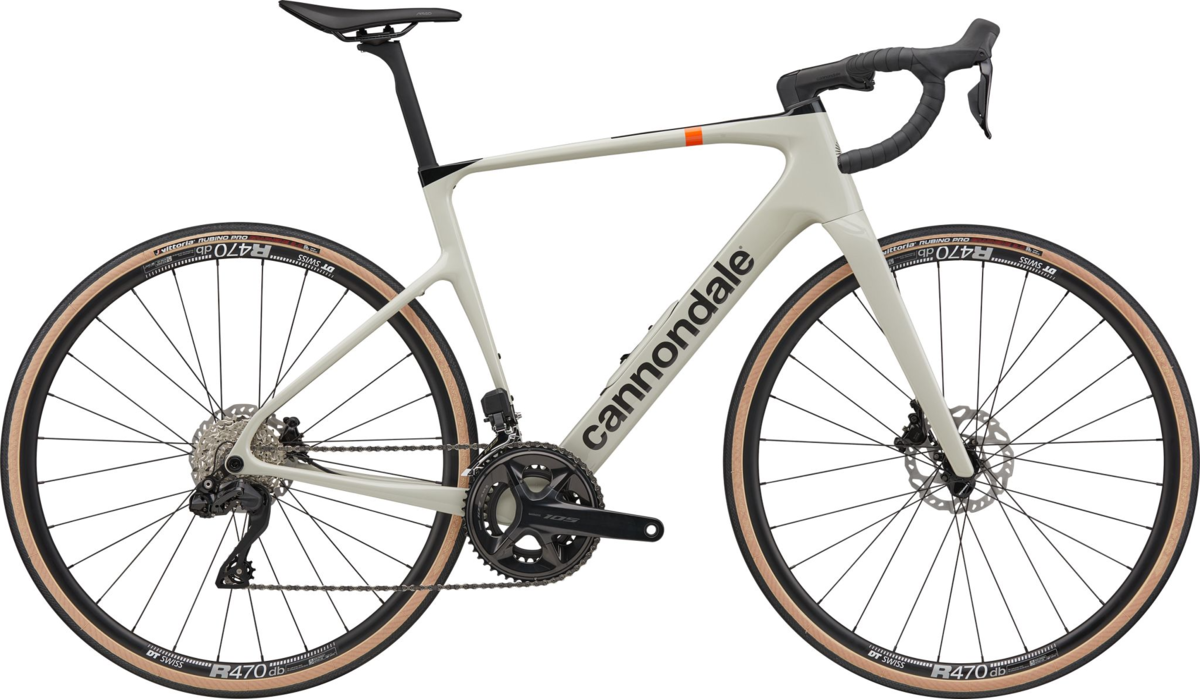

Cannondale Synapse Carbon 4

Cannondale Synapse Carbon 4
  • Color: Chalk
  • Color: Metallic Red
$4,599.99
Color:
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Shipping is not available for this item. Select in-store pick up at one of our convenient 3 Chicago locations or choose local delivery. Enjoy our 30 Day Best Price Guarantee, ensuring you the lowest price

Details

Road Reimagined

Go long, go short, go fast. This is WorldTour performance for real world rides.

Highlights
- Lightweight, smoothly compliant, sleekly aero Synapse carbon frameset with StashPort downtube storage

- Shimano 105 Di2 – Impressively smooth shifting from Shimano's journeyman electronic 2x12-speed drivetrain

- DT Swiss 470 rims with Vittoria Rubino Pro IV 32c tires - grip, durability, and speed

- Cannondale C1 Aero 27 Carbon seatpost - speed meets comfort

- Fizik Vento Argo R5 saddle - ergonomic comfort with pressure relieving cutout

Frame Size48cm51cm54cm56cm58cm61cm
Wheel Size 700c 700c 700c 700c 700c 700c
Seat Tube Length (in/cm) 16.0 / 40.7 17.4 / 44.3 18.9 / 48.0 20.5 / 52.0 21.7 / 55.0 23.2 / 59.0
Top Tube Horizontal (in/cm) 21.0 / 53.3 21.4 / 54.4 21.9 / 55.5 22.3 / 56.7 22.8 / 57.9 23.5 / 59.8
Top Tube Actual (in/cm) 20.1 / 51.0 20.5 / 52.1 21.0 / 53.3 21.5 / 54.7 22.0 / 56.0 22.8 / 57.9
Head Tube Angle (degrees) 71.3° 71.4° 73.1° 73.2° 73.3° 73.4°
Seat Tube Angle (degrees) 71.2° 74.2° 77.3° 78.7° 83.3° 86.8°
Standover (in/cm) 28.0 / 71.2 29.2 / 74.2 30.4 / 77.3 31.0 / 78.7 32.8 / 83.3 34.2 / 86.8
Head Tube Length (in/cm) 4.3 / 10.9 5.1 / 13.0 5.6 / 14.3 6.5 / 16.4 7.4 / 18.7 8.6 / 21.8
Wheelbase (in/cm) 39.0 / 99.1 39.4 / 100.2 38.9 / 98.7 39.3 / 99.8 39.8 / 101.1 40.5 / 102.8
Front Center (in/cm) 23.1 / 58.8 23.5 / 59.8 23.0 / 58.3 23.4 / 59.4 23.9 / 60.6 24.5 / 62.3
Chain Stay Length (in/cm) 16.3 / 41.5 16.3 / 41.5 16.3 / 41.5 16.3 / 41.5 16.3 / 41.5 16.3 / 41.5
Bottom Bracket Drop (in/cm) 3.0 / 7.5 3.0 / 7.5 2.9 / 7.3 2.9 / 7.3 2.8 / 7.0 2.8 / 7.0
Bottom Bracket Height (in/cm) 10.6 / 27.0 10.6 / 27.0 10.7 / 27.2 10.7 / 27.2 10.8 / 27.5 10.8 / 27.5
Fork Rake (in/cm) 2.2 / 5.5 2.2 / 5.5 1.8 / 4.5 1.8 / 4.5 1.8 / 4.5 1.8 / 4.5
Trail (in/cm) 2.3 / 5.9 2.3 / 5.8 2.3 / 5.8 2.2 / 5.7 2.2 / 5.6 2.2 / 5.6
Stack (in/cm) 20.9 / 53.0 21.7 / 55.0 22.4 / 57.0 23.2 / 59.0 24.0 / 61.0 25.2 / 64.0
Reach (in/cm) 14.6 / 37.1 14.8 / 37.6 15.0 / 38.1 15.2 / 38.7 15.5 / 39.3 15.8 / 40.2
Frame Size (cm)Rider Height Range
48 cm 5'2" – 5'6"
51 cm 5'5" – 5'9"
54 cm 5'7" – 5'11"
56 cm 5'9" – 6'1"
58 cm 6'0" – 6'4"
61 cm 6'3" – 6'8"

Specs

Frame Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts
Fork Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
Rims DT Swiss R470 db, 28h
Hubs (F) Shimano RS470, 12x100mm centerlock / (R) Shimano RS470, 12x142mm centerlock
Spokes Stainless Steel, 14g
Tires Vittoria Rubino Pro IV, 700x32c
Bottom Bracket Shimano BSA 68
Crankset Shimano 105 7100, BSA, 50/34
Shifters Shimano 105 Di2 R7170, wireless, 12-speed
Front Derailleur Shimano 105 Di2 7150, braze-on
Rear Derailleur Shimano 105 Di2 7150
Cassette/Freewheel Shimano 105 7100, 11-34, 12-speed
Chain Shimano 105 7100, 12-speed
Brakes Shimano 105 7170 hydraulic disc, 160/160mm RT70 rotors
Brake Levers Shimano 105 Di2 7170 hydraulic disc
Handlebars Vision Trimax Aero Alloy
Tape/Grips Cannondale Bar Tape, 3.5mm
Stem Cannondale C1 Conceal, Alloy, 31.8, -6°
Headset Integrated, 1-1/8" - 1-1/2"
Seatpost Cannondale C1 Aero 27 Carbon, SmartSense compatible, 330mm length, 0mm offset (44-48cm), 15mm offset (51-61cm)
Saddle Fizik Vento Argo X5, 140mm

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Chalk / 44cm / 700c 196870185173 C12075U2044 2459
Chalk / 48cm / 700c 196870185180 C12075U2048 2460
Chalk / 51cm / 700c 196870185197 C12075U2051 2461
Chalk / 54cm / 700c 196870185203 C12075U2054 2462
Chalk / 56cm / 700c 196870185210 C12075U2056 2463
Chalk / 58cm / 700c 196870185227 C12075U2058 2464
Chalk / 61cm / 700c 196870185234 C12075U2061 2465
Metallic Red / 44cm / 700c 196870084865 C12075U1044 2435
Metallic Red / 48cm / 700c 196870084872 C12075U1048 2436
Metallic Red / 51cm / 700c 196870084889 C12075U1051 2437
Metallic Red / 54cm / 700c 196870084896 C12075U1054 2438
Metallic Red / 56cm / 700c 196870084902 C12075U1056 2439
Metallic Red / 58cm / 700c 196870084919 C12075U1058 2440
Metallic Red / 61cm / 700c 196870084926 C12075U1061 2441
