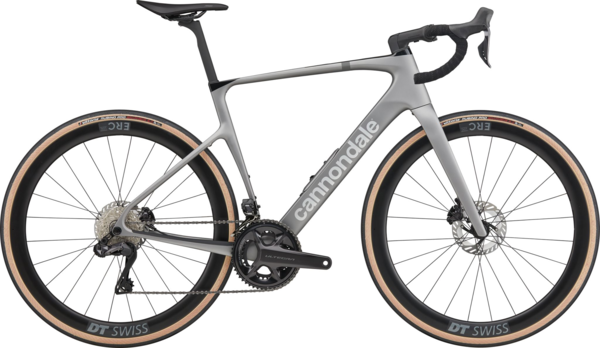

Cannondale Synapse Carbon 2

Cannondale Synapse Carbon 2
  • Color: Grey
$7,499.99
Color: Grey
Size: Select size
Wheel Size: 700c
Please select options Unavailable
Shipping is not available for this item. Select in-store pick up at one of our convenient 3 Chicago locations or choose local delivery. Enjoy our 30 Day Best Price Guarantee, ensuring you the lowest price

Details

Road Reimagined

Go long, go short, go fast. This is WorldTour performance for real world rides.

Highlights
- Lightweight, smoothly compliant, sleekly aero Synapse carbon frameset with StashPort downtube storage

- Ultegra Di2 – Effortlessly accurate shifting from Shimano's penultimate electronic 12-speed drivetrain

- DT Swiss carbon road wheels - lightweight all-road capability

- Cannondale C1 Aero 27 Carbon seatpost - speed meets comfort

- Fizik Vento Argo R5 saddle - ergonomic comfort with pressure relieving cutout

Frame Size48cm51cm54cm56cm58cm61cm
Wheel Size 700c 700c 700c 700c 700c 700c
Seat Tube Length (in/cm) 16.0 / 40.7 17.4 / 44.3 18.9 / 48.0 20.5 / 52.0 21.7 / 55.0 23.2 / 59.0
Top Tube Horizontal (in/cm) 21.0 / 53.3 21.4 / 54.4 21.9 / 55.5 22.3 / 56.7 22.8 / 57.9 23.5 / 59.8
Top Tube Actual (in/cm) 20.1 / 51.0 20.5 / 52.1 21.0 / 53.3 21.5 / 54.7 22.0 / 56.0 22.8 / 57.9
Head Tube Angle (degrees) 71.3° 71.4° 73.1° 73.2° 73.3° 73.4°
Seat Tube Angle (degrees) 71.2° 74.2° 77.3° 78.7° 83.3° 86.8°
Standover (in/cm) 28.0 / 71.2 29.2 / 74.2 30.4 / 77.3 31.0 / 78.7 32.8 / 83.3 34.2 / 86.8
Head Tube Length (in/cm) 4.3 / 10.9 5.1 / 13.0 5.6 / 14.3 6.5 / 16.4 7.4 / 18.7 8.6 / 21.8
Wheelbase (in/cm) 39.0 / 99.1 39.4 / 100.2 38.9 / 98.7 39.3 / 99.8 39.8 / 101.1 40.5 / 102.8
Front Center (in/cm) 23.1 / 58.8 23.5 / 59.8 23.0 / 58.3 23.4 / 59.4 23.9 / 60.6 24.5 / 62.3
Chain Stay Length (in/cm) 16.3 / 41.5 16.3 / 41.5 16.3 / 41.5 16.3 / 41.5 16.3 / 41.5 16.3 / 41.5
Bottom Bracket Drop (in/cm) 3.0 / 7.5 3.0 / 7.5 2.9 / 7.3 2.9 / 7.3 2.8 / 7.0 2.8 / 7.0
Bottom Bracket Height (in/cm) 10.6 / 27.0 10.6 / 27.0 10.7 / 27.2 10.7 / 27.2 10.8 / 27.5 10.8 / 27.5
Fork Rake (in/cm) 2.2 / 5.5 2.2 / 5.5 1.8 / 4.5 1.8 / 4.5 1.8 / 4.5 1.8 / 4.5
Trail (in/cm) 2.3 / 5.9 2.3 / 5.8 2.3 / 5.8 2.2 / 5.7 2.2 / 5.6 2.2 / 5.6
Stack (in/cm) 20.9 / 53.0 21.7 / 55.0 22.4 / 57.0 23.2 / 59.0 24.0 / 61.0 25.2 / 64.0
Reach (in/cm) 14.6 / 37.1 14.8 / 37.6 15.0 / 38.1 15.2 / 38.7 15.5 / 39.3 15.8 / 40.2
Frame Size (cm)Rider Height Range
48 cm 5'2" – 5'6"
51 cm 5'5" – 5'9"
54 cm 5'7" – 5'11"
56 cm 5'9" – 6'1"
58 cm 6'0" – 6'4"
61 cm 6'3" – 6'8"

Specs

Frame Synapse Carbon, Proportional Response construction, integrated cable routing, downtube Stashport, 12x142 thru-axle, UDH, BSA 68mm threaded BB, flat mount disc, integrated seat binder, SmartSense Gen 2.0 compatible, fender mounts
Fork Synapse Carbon, integrated crown race, 12x100mm thru-axle, flat mount disc, internal routing, 1-1/8" to 1-1/5" Delta steerer, 55mm offset, fender mounts
Rims DT Swiss ERC 45, carbon, 24mm inner width, 45mm depth, 24h, tubeless ready
Hubs (F) DT Swiss 370, 12x100mm centerlock / (R) DT Swiss 370, 12x142mm centerlock
Spokes DT Swiss
Tires Vittoria Rubino Pro IV, 700x32c
Bottom Bracket Shimano BSA 68
Crankset Shimano Ultegra R8100, 50/34
Shifters Shimano Ultegra Di2 R8170, wireless, 12-speed
Front Derailleur Shimano Ultegra Di2 R8150
Rear Derailleur Shimano Ultegra Di2 R8150
Cassette/Freewheel Shimano Ultegra R8100, 11-34, 12-speed
Chain Shimano Ultegra, 12-speed
Brakes Shimano Ultegra R8170, 160/160mm CL800 rotors
Handlebars FSA SL-K Compact Carbon
Tape/Grips Fizik Tempo Bondcush Soft, 3mm
Stem Cannondale C1 Conceal, Alloy, 31.8, -6°
Headset Integrated, 1-1/8" - 1-1/2"
Seatpost HollowGram 27 SL, Carbon, 2 bolt clamp, 330mm, 15mm offset
Pedals Fizik Vento Argo X5, 140mm

* Subject to change without notice.

Part Numbers

Option UPC MPN Store SKU
Grey / 44cm / 700c 196870275706 C12205U1044 2530
Grey / 48cm / 700c 196870275713 C12205U1048 2531
Grey / 51cm / 700c 196870275720 C12205U1051 2532
Grey / 54cm / 700c 196870275737 C12205U1054 2533
Grey / 56cm / 700c 196870275744 C12205U1056 2534
Grey / 58cm / 700c 196870275751 C12205U1058 2535
Grey / 61cm / 700c 196870275768 C12205U1061 2536
